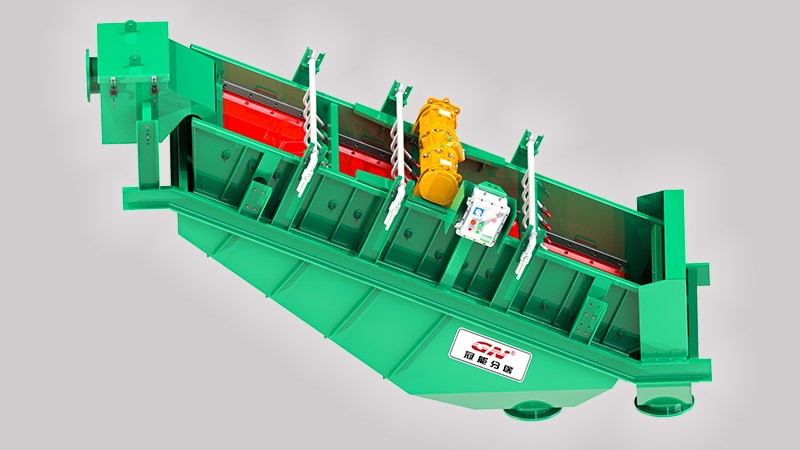

In modern mineral processing operations, the GN High-Shear Circular Vibrating Screen stands out as an advanced screening solution, demonstrating exceptional performance in grading, dewatering, and coarse particle separation for materials such as silica sand, feldspar, coal, iron ore, and gold ore. Its innovative design and operational efficiency have made it indispensable in mining applications worldwide.
Working Principle
Powered by a single vibration motor, the GN High-Shear Circular Vibrating Screen generates circular motion through centrifugal force. The motor drives an eccentric block to rotate at high speed, creating a three-dimensional vibration that propagates uniformly across the screen assembly. This motion enables materials to perform continuous parabolic trajectories on the screen surface—rolling, bouncing, and dispersing—thereby achieving rapid stratification and precision separation.
The screen box, arranged in a single-layer, multi-section configuration, ensures optimal material distribution. Adjustable screen angles (typically 15°–25°) allow operators to fine-tune processing efficiency based on material characteristics. The unique vibration pattern minimizes energy consumption while maximizing throughput, with processing capacities reaching up to 50% higher than conventional screens.
Key Advantages
High Screening Efficiency: The screen’s intense vibration reduces material adhesion and mesh clogging, achieving a screening accuracy of 95% for particles as fine as 0.074mm.
Durability: Equipped with flexible polyurethane screen panels (aperture rate: 28%–45%), the device resists abrasion and corrosion, extending service life beyond six months even under high-load operations.
Energy Savings: The optimized single-motor drive system consumes 30% less power compared to dual-motor designs, while maintaining stable amplitudes of 4–6mm.
Adaptability: Compact structure (modular design reduces footprint by 20%) and adjustable parameters make it suitable for diverse scenarios, from coal washing plants to metallic ore processing lines.
Mining Applications
In iron ore beneficiation, the screen achieves 98% separation efficiency in classifying 0.5–30mm pellets. For gold ore cyanidation processes, its 0.1mm fine-screen configuration recovers 92% of gold-bearing particles during slurry dehydration. In coal preparation plants, the 6–13mm mesh configuration processes 500t/h raw coal with moisture content reduced to 14% post-screening.
Field tests in Australian iron mines show a 40% increase in productivity compared to traditional screens, with maintenance intervals extended to 800 operating hours. The screen’s rubber spring damping system reduces vibration transmission to foundations by 70%, significantly lowering infrastructure costs.
Maintenance and Optimization
Operators should perform weekly inspections on screen tension (maintain 18–22kN/m²) and monthly motor bearing lubrication. Real-time monitoring of vibration frequency (typically 900–1500rpm) through IoT-enabled systems can predict mesh wear patterns, reducing unplanned downtime by 60%.
Conclusion
The GN High-Shear Circular Vibrating Screen redefines efficiency in mineral processing through its intelligent vibration mechanics and robust construction. By delivering 20–35% higher throughput with lower operational costs, it has become the preferred solution for modern mining operations pursuing sustainable, high-yield production. As automation technologies integrate with screening systems, this equipment will continue to drive innovation in particle separation engineering.
